We’ve moved – into a new future!
Dear customers, business partners and friends,
After 27 exciting, successful, and transformative years, we’ve reached a significant milestone: RF-Design has successfully moved into our new company building! This marks not only a new chapter in our company’s history but also underscores our ongoing commitment to remain a technological leader and innovation driver.
As founder and managing director, I’m incredibly proud of how RF-Design has evolved over nearly three decades. The move into our new premises was a logical and necessary step – providing more space, new opportunities, and an ideal environment for our dedicated team to thrive.
Our new facility offers significantly more room and allows for modern, streamlined production and development processes. These improvements are already enhancing our workflows and accelerating innovation across all areas.
Our new location sends a strong message – to our customers, partners, and employees alike. We are actively investing in progress, sustainability, and innovation while remaining true to our roots.
With best regards
Ralf Mayr (Founder & Managing Director) and the RF-Design Team
Since July 1, 2025 you will find us in our new, modern company building:
Lahnstrasse 13
64625 Bensheim
Germany
NEW PRODUCTS
EcoLine FiberLink 10GHz
S- and C-Band EcoLine FiberLink
The EcoLine TX/RX10G-EL and Modules represent a cost-effective RF over Fiber solution designed in a compact form allowing a handheld operation as well as population in a 1RU/19” chassis in a locally managed Environment. EcoLine TX/RX10G-EL modules allow a conventional unidirectional links for S and C Band application.
Satellite Transponder Monitor stm3G
Selective RF-Power Meter 50MHz – 3GHz
The stm3G is a high-performance, compact and rack-mountable selective RF power monitoring unit, specifically developed for monitoring the power levels of individual satellite transponders in 3GHz and in the L-band range. Based on the proven hardware design of the RF-Design PwrM3G, this enhanced version adds the capability for precise, selective power tracking of defined carrier frequencies.
Ecoline FiberLink
Extended L-Band and Broadband EcoLine FiberLink
The Ecoline TX/RX2450EL and EcoLine TRX2450EL / TRX3000EL Modules represent a cost effective RF over Fiber solution designed in a compact form allowing a handheld operation as well as population in a 1RU/19” chassis in a locally managed Environment. Ecoline TX/RX2450EL modules allow a conventional unidirectional links, while EcoLine TRX2450EL / TRX3000EL Modules allow a bidirectional link within one module by utilizing different Wavelengths.
SLC4124 Standard LNB/LNA Controller
The SLC4124 is a standard LNB power supply unit featuring four internal Bias-Tees/Directional couplers with 13V, 18V and 22kHz supply for max. 4 LNB´s. The unit allows to configure all LNB´s individually, also via Web-Interface. The SLC4124 is available in a 1RU/19″ rack mount chassis and also provides 1:1 hot swappable power supply redundancy. Furthermore, the unit offers RF power monitoring for every Bias-Tee via a 20dB measuring port located at the front of the unit.
LRC1142 – LNB Redundancy Controller
The LNB Redundancy Controller is a switching and managing device for redundant LNB operation in a professional environment. Two LNB’s can be operated and powered independent. The current consumption and the rf power is continuously monitored form each polarisation and from each LNB. The unit allows to configure all LNB´s individually, also via Web-Interface.

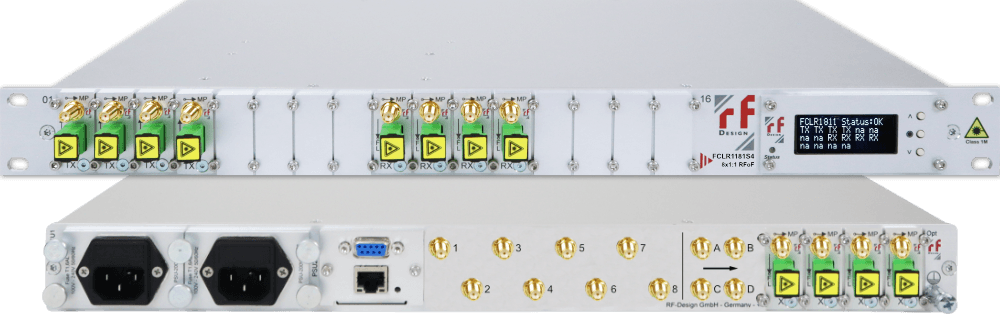

FiberLink CompactLine
redundant RF-over-Fiber System
The 16×1, 4×1:1, 4×2+1 and 2×4+1 redundant RF-over-Fiber system of our FiberLink CompactLine Series comes in a 1RU/19″ chassis and an IP65 ODB. It is designed for flexible, high quality and secure optical transmission of up to 4×2 or 2×4 RF signals (L-Band, Extended L-Band and Broadband 3,2GHt) over a distance of up to 20km. This redundant RF-over-Fiber allows a quattro 2+1 /1:1 or a dual 4+1 redundant configuration and can be populated with 8/12 active optical TX/RX modules and up to 2/4 hot-standby TX/RX modules.
Dual Channel RF PowerMeter
100MHz – 70GHz
The PwrM70G represents broadband power meter device perfectly suited to measure RF in C, KU and KA Band. The PwrM70G is available as a compact handheld unit or a modular type 1RU/19” rack mount chassis that can hold up to 4 power meter modules. The PwrM70G is a perfect solution for broadband monitoring applications, capable for simultaneous monitoring of 2 to 8 RF signals within a frequency range of 100MHz – 70GHz.
